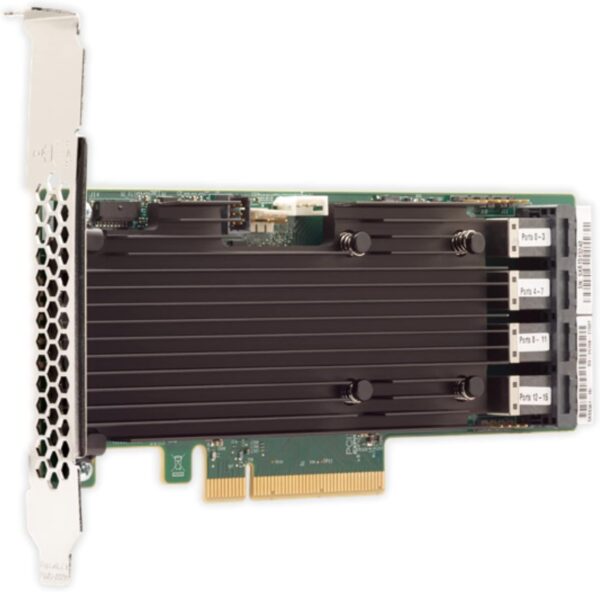

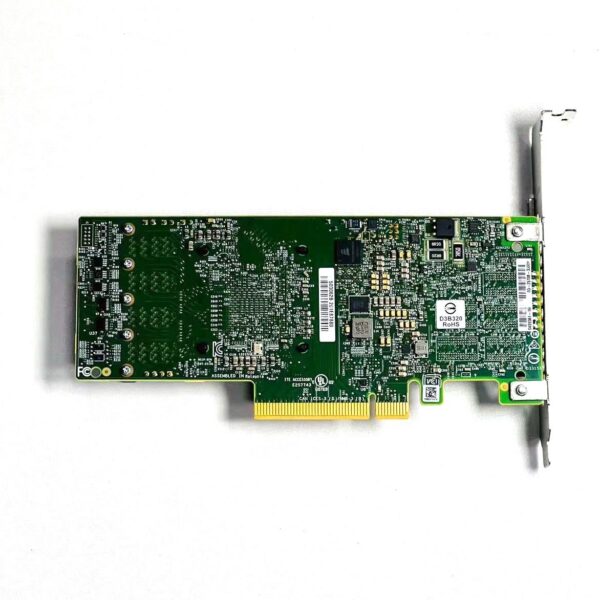

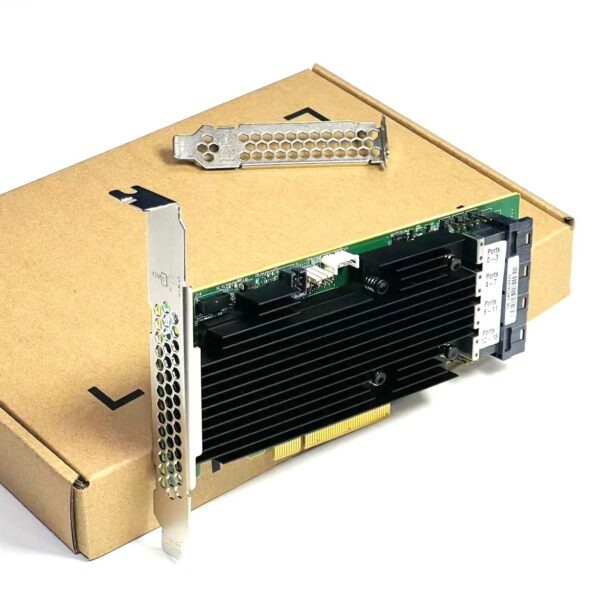

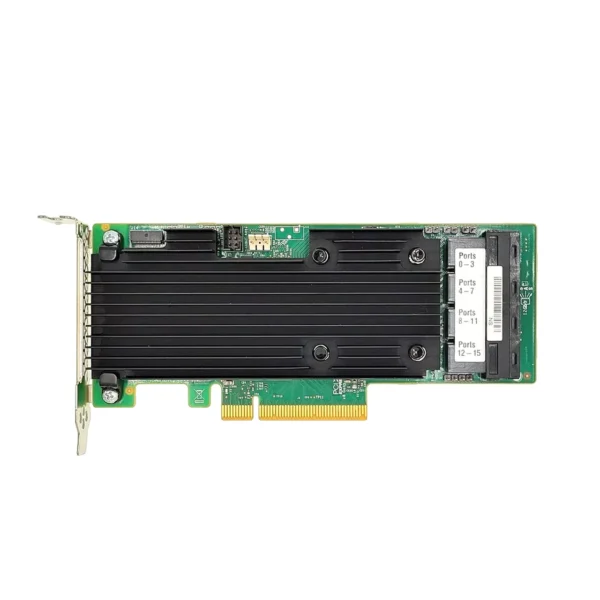

Broadcom LSI 9361-16i 2Gb High Port Count 12 Gb/s PCI Express SATA + SAS RAID Controller

Product Model: MegaRAID SAS 9361-16i
Solution Provided: Sixteen-port internal SAS/SATA RAID solution for high-density and mainstream servers and storage systems requiring high drive count support inside the box.
Connectors: Four SFF8643 ×4 (Horizontal Mount)
Host Bus Type: x8 lane PCI Express 3.0 compliant
Support RAID: 0, 1, 5, 6, 10, 50, 60
Data Transfer Rates: Up to 12 Gb/s per port
Cache Memory: 2GB DDRIIII
Cache Protection: Optional CVPM02

I/O Processor/SAS Controller: SAS3316 dual core RAID on Chip (ROC)
Device Support: Up to 240 SAS and/or SATA devices
Physical Dimensions: MD2 low profile (6.127 in. × 2.712 in.)/(155.65 mm × 68.90 mm)
Operating Temperature: Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory (CVPM02): 55°C
Operating Voltage: +3.3V, +12V
MTBF (Calculated): >>2,500,000 hours at 40°C
Hardware Warranty: 3 years; with advanced replacement option
Regulatory Certifications: USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES -003, Class B); Taiwan (CNS 13438); Japan (VCCI V-3);
Australia/New Zealand (AS/NZS CISPR 22);Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024);
Safety: EN/IEC/UL 60950; RoHS; WEEE;
MegaRAID Management Suite:
• LSA (LSI Storage Authority)
• MegaRAID Storage Manager
• StorCLI (command-line interface)
• CTRL-R (BIOS configuration utility)
• HII (UEFI Human Interface Infrastructure)
SSD Optimization
MegaRAID CacheCade® Pro 2.0 Software leverages SSDs in front of HDD volumes to create high-capacity, high-perfor
mance controller cache pools (Optional Upgrade)
